#include "LoRa_E22.h"
#include
#include
#include "secret.h"
#include "ThingSpeak.h" // always include thingspeak header file after other header files and custom macros

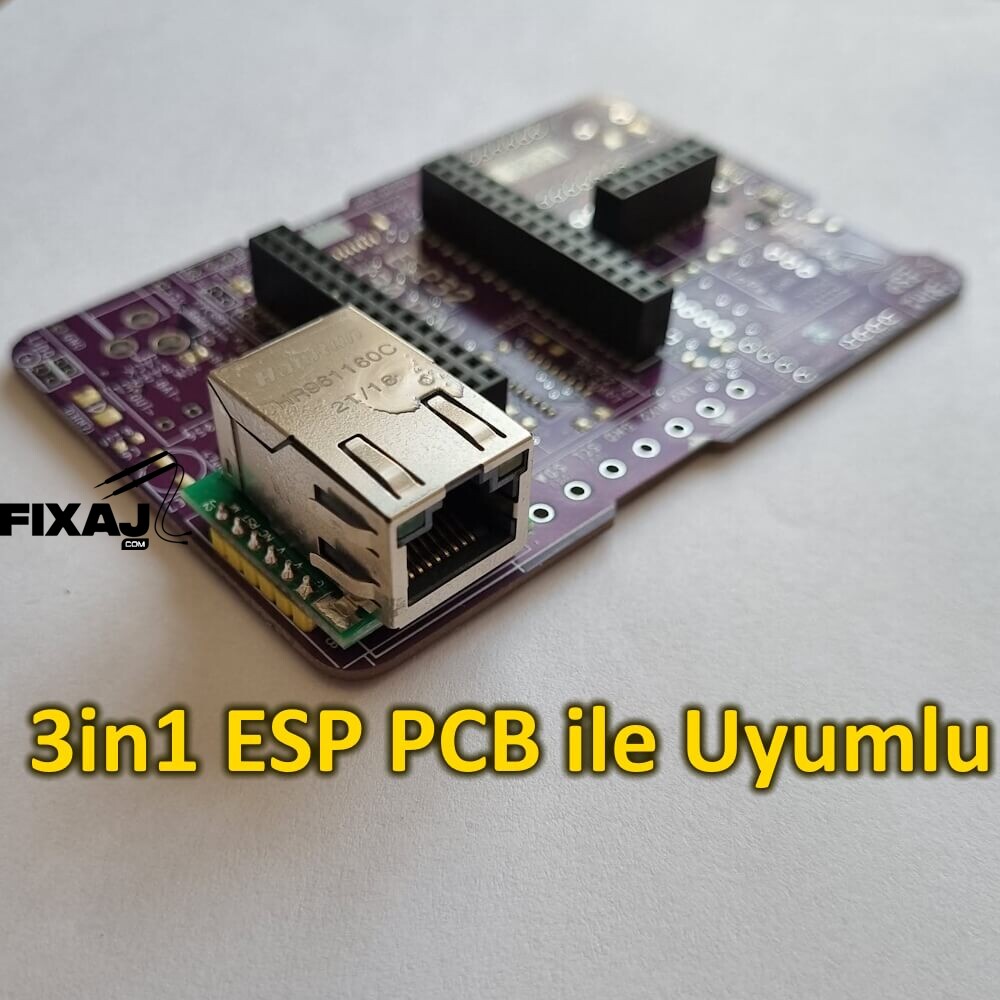

#define M0 32 //3in1 PCB mizde pin 7
#define M1 33 //3in1 PCB mizde pin 6
#define RX 27 //3in1 PCB mizde pin RX **YENİ** Versiyon 1.0 ile
#define TX 35 //3in1 PCB mizde pin TX
HardwareSerial fixajSerial(1);
LoRa_E22 e32(TX, RX, &fixajSerial, UART_BPS_RATE_9600);
HardwareSerial ss(2); //RS232 çıkışı
struct Signal {
char type[15] = "Fixaj.com";
byte role;
bool role1;
bool role2;
} data;
byte ethernetGelenVeri = 0;
/////////////////////// Ethernet
byte mac[] = SECRET_MAC;
// Set the static IP address to use if the DHCP fails to assign
IPAddress ip(192, 168, 0, 177);
IPAddress myDns(192, 168, 0, 1);
EthernetClient client;
// Weather station channel details
unsigned long weatherStationChannelNumber = SECRET_CH_ID_WEATHER_STATION;
unsigned int temperatureFieldNumber = 4;
// Counting channel details
unsigned long counterChannelNumber = SECRET_CH_ID_COUNTER;
const char* myCounterReadAPIKey = SECRET_READ_APIKEY_COUNTER;
unsigned int counterFieldNumber = 1;
//////////////////////
unsigned long kanalBekleme_sure = 0;
int kanalBekleme_bekleme = 2000;
void setup() {
pinMode(M0, OUTPUT);
pinMode(M1, OUTPUT);
digitalWrite(M0, LOW);
digitalWrite(M1, LOW);
pinMode(14, OUTPUT); //buzzer ve led pini aynı, diğer led AUX ledi
digitalWrite(14, 0);
Serial.begin(115200);
e32.begin(); //LoRa açılış
delay(500);
ss.begin(9600, SERIAL_8N1, 16, 17); //RS232 Açılış
delay(500);

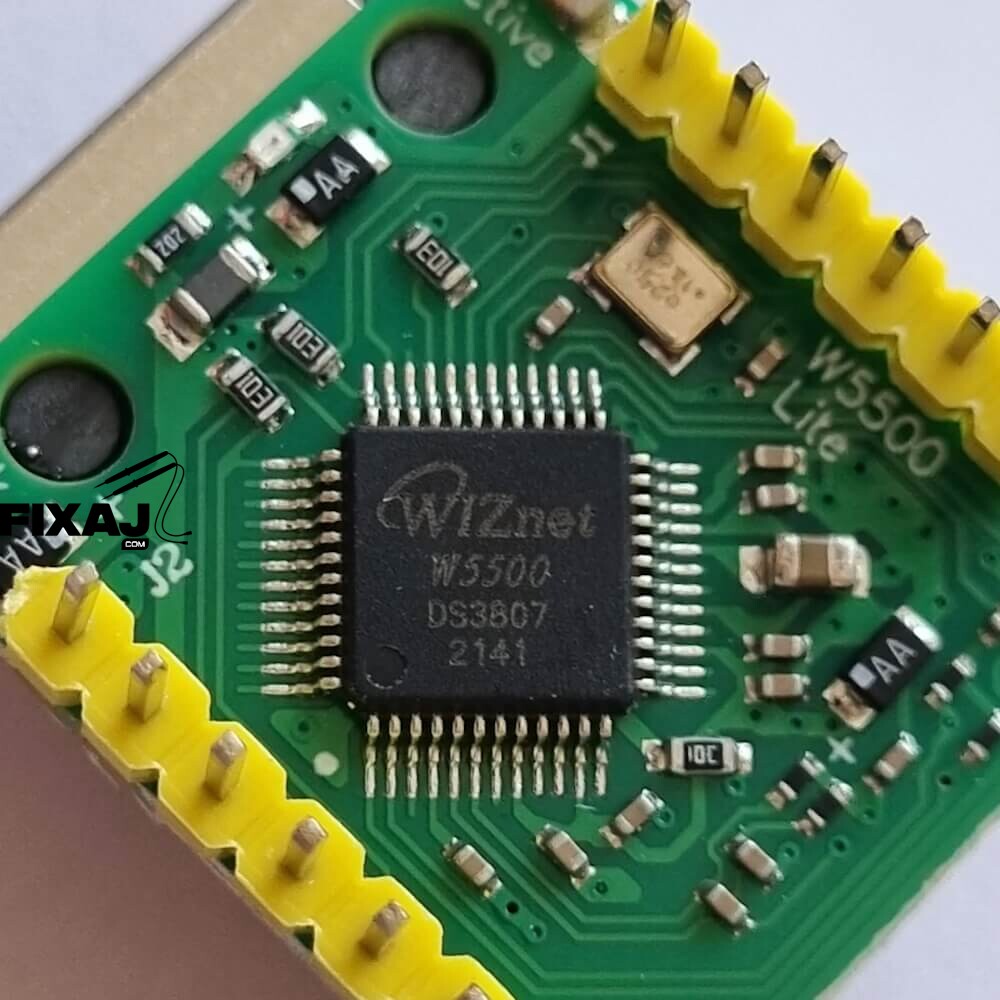

Ethernet.init(5); //Ethernet chip select pini tanımla 3in1 ESP için 5
// start the Ethernet connection:
Serial.println("Initialize Ethernet with DHCP:");
if (Ethernet.begin(mac) == 0) {
Serial.println("Failed to configure Ethernet using DHCP");
// Check for Ethernet hardware present
if (Ethernet.hardwareStatus() == EthernetNoHardware) {
Serial.println("Ethernet shield was not found. Sorry, can't run without hardware. :(");
while (true) {
delay(1); // do nothing, no point running without Ethernet hardware
}
}
if (Ethernet.linkStatus() == LinkOFF) {
Serial.println("Ethernet cable is not connected.");
}
// try to congifure using IP address instead of DHCP:
Ethernet.begin(mac, ip, myDns);
} else {
Serial.print(" DHCP assigned IP ");
Serial.println(Ethernet.localIP());
}
// give the Ethernet shield a second to initialize:
delay(1000);
ThingSpeak.begin(client); // Initialize ThingSpeak
Serial.println(F("Fixaj.com başlıyoruz..."));
}
void loop() {
while (e32.available() > 5) {
// Gelen mesaj okunuyor
ResponseStructContainer rsc = e32.receiveMessage(sizeof(Signal));
struct Signal data = *(Signal*)rsc.data;
Serial.print("Gelen Messaj: ");
Serial.println(data.role);
rsc.close();
if (strcmp(data.type, "Fixaj.com") == 0) {
Serial.println("sifre dogru");
/////ethernet okuma
int statusCode = 0;
// Read in field 4 of the public channel recording the temperature
float temperatureInF = ThingSpeak.readFloatField(weatherStationChannelNumber, temperatureFieldNumber);
// Check the status of the read operation to see if it was successful
statusCode = ThingSpeak.getLastReadStatus();
if (statusCode == 200) {
Serial.println("Temperature at MathWorks HQ: " + String(temperatureInF) + " deg F");
ekranYaz((byte) temperatureInF );
} else {
Serial.println("Problem reading channel. HTTP error code " + String(statusCode));
}
//delay(15000); // No need to read the temperature too often.
// Read in field 1 of the private channel which is a counter
long count = ThingSpeak.readLongField(counterChannelNumber, counterFieldNumber, myCounterReadAPIKey);
// Check the status of the read operation to see if it was successful
statusCode = ThingSpeak.getLastReadStatus();
if (statusCode == 200) {
Serial.println("Counter: " + String(count));
} else {
Serial.println("Problem reading channel. HTTP error code " + String(statusCode));
}
//delay(15000); // No need to read the counter too often.
}
}
if (millis() > kanalBekleme_sure + kanalBekleme_bekleme) {
kanalBekleme_sure = millis();
digitalWrite(14, !digitalRead(14));
Serial.print("led: ");
Serial.println(digitalRead(14));
}
}
void ekranYaz(byte a) {
ss.write(0xaa); // packet head
ss.write(0x3d); // VP_N16 write command
ss.write(0x00); // VP_N16 address
ss.write(
