ESP32 S3 Board N16R8 Lehimlenmiş Tak Çalıştır USB TYPE C

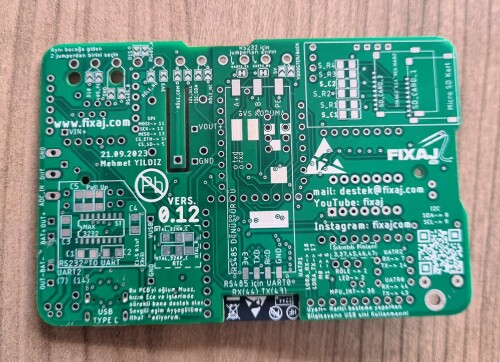

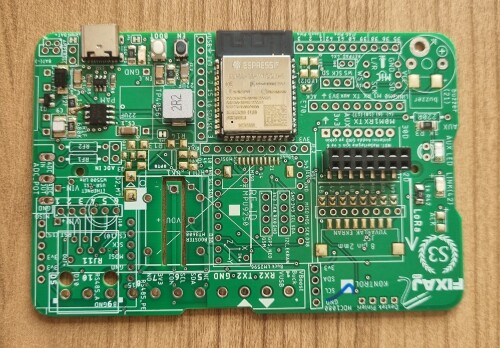

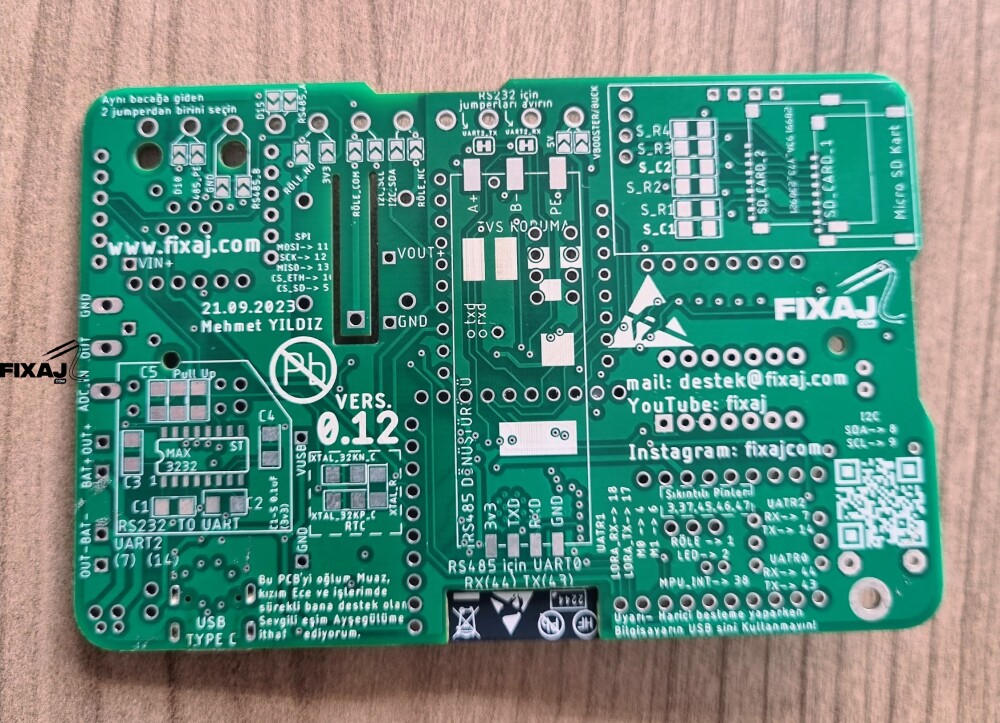

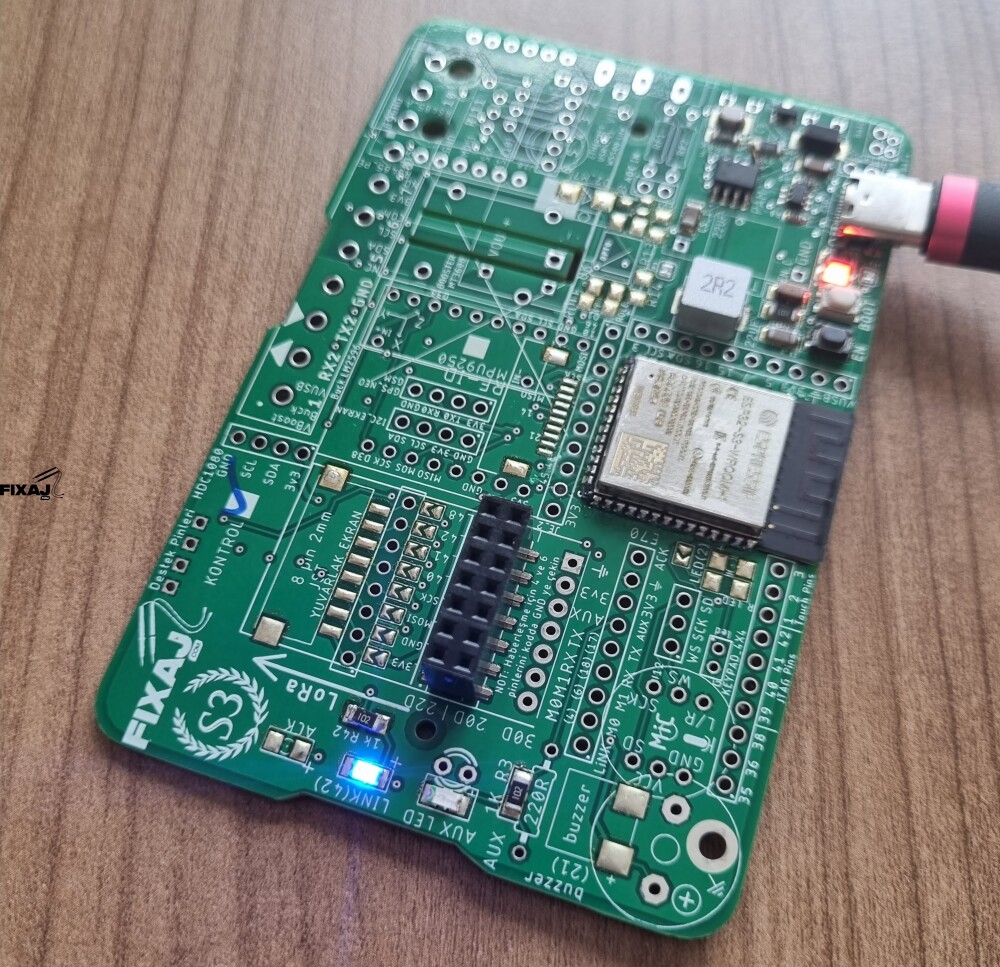

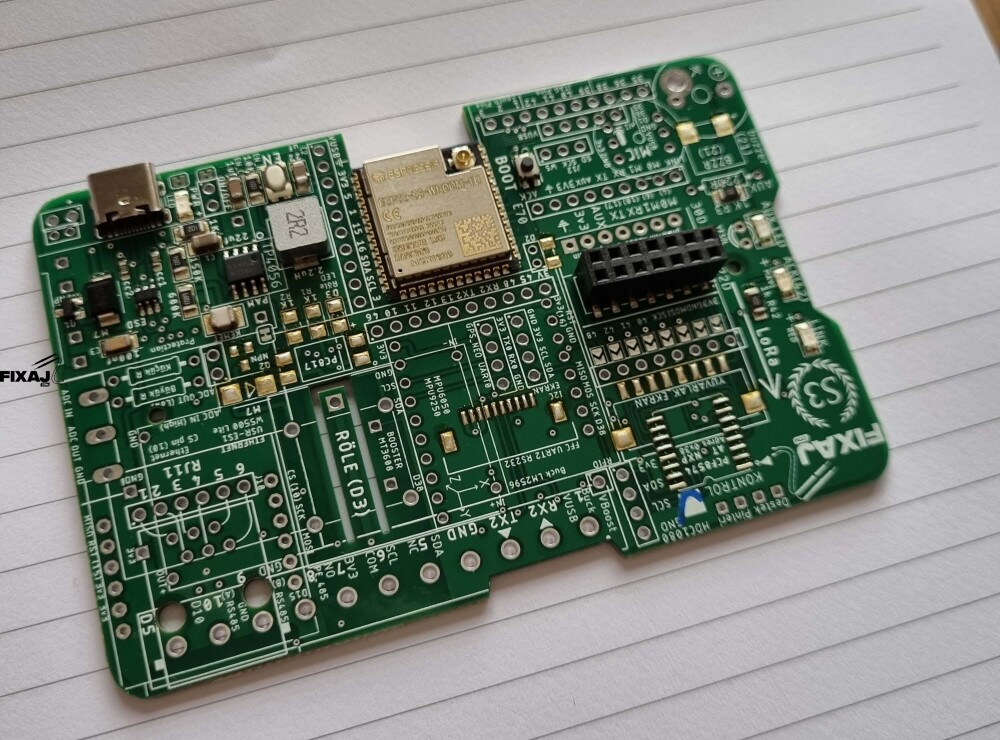

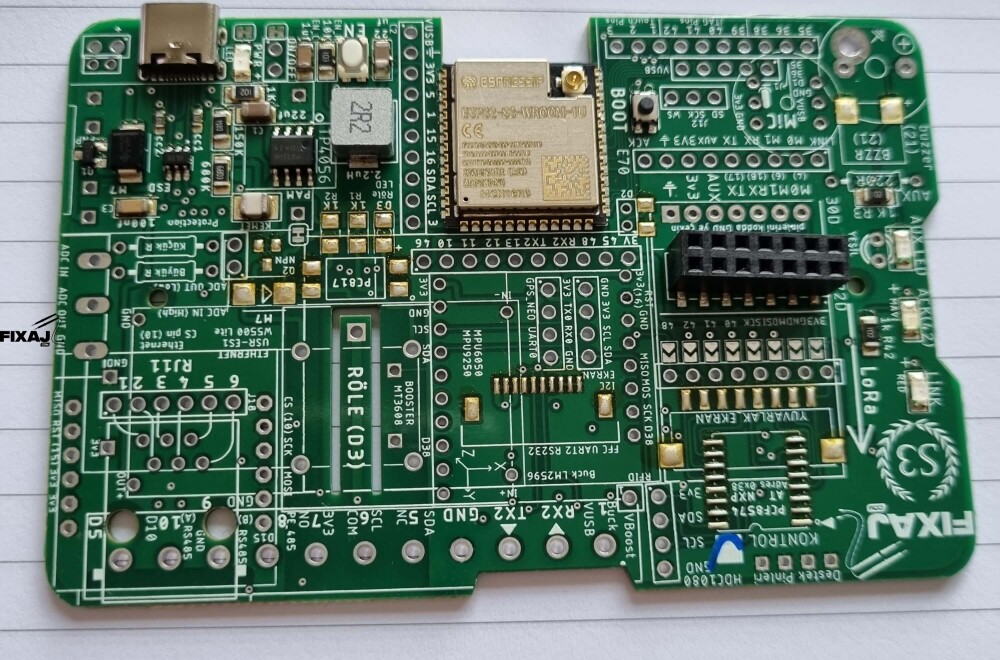

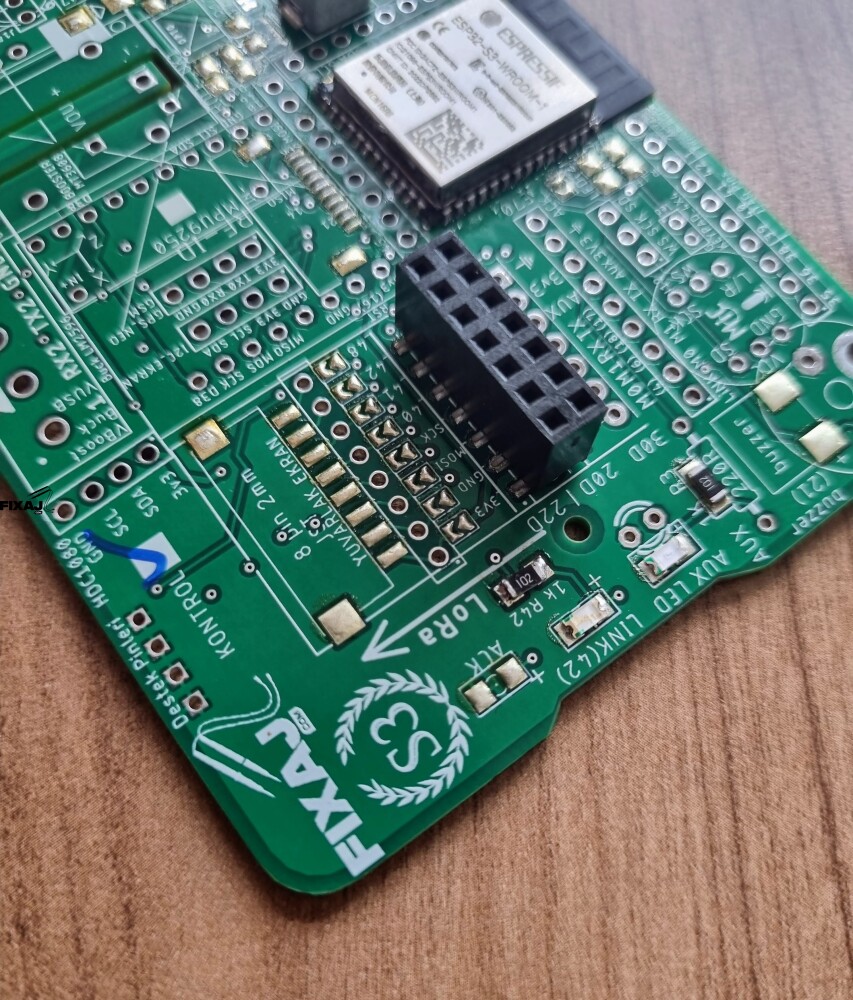

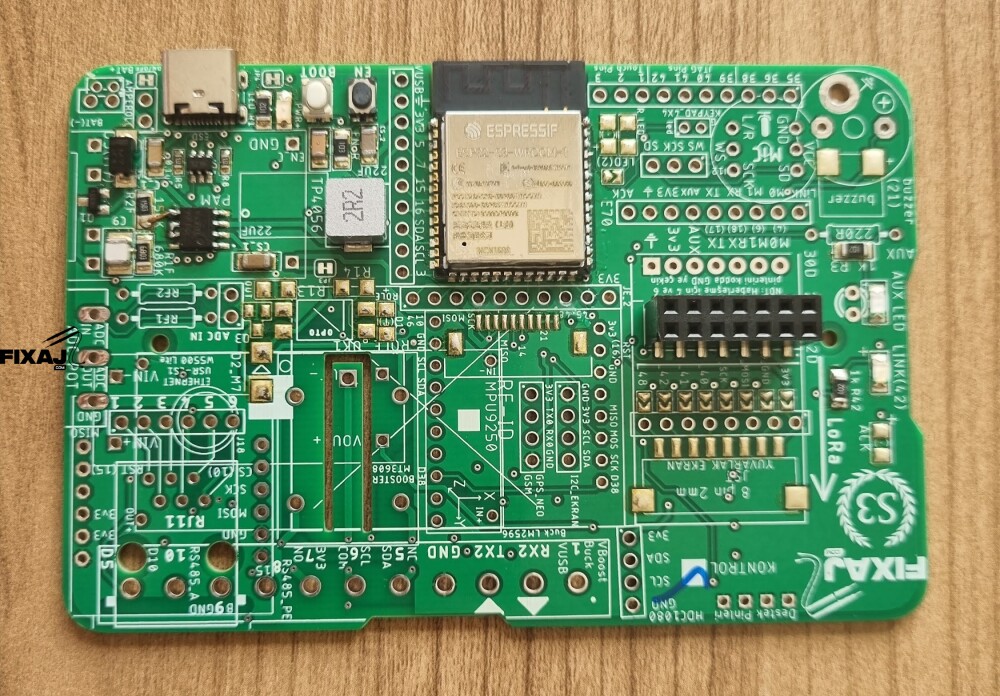

ESP32 S3 PCB

Features:

1.  USB type C interface
2.  3 UART free to use (include Serial0)
3.  Switched regulator up to %95 efficiency SMPS
4.  Socket for EBYTE LoRa modules E32, E22, E70 are tested
5.  ALL Communication protocols supported: RS232, RS485, CANBUS,
6.  GPS module supported (ready to places on PCB)
7.  FFC Socket for TOPWAY 4.3 display
8.  Relay on board (ready to places on PCB)
9.  RJ11 socket on board (ready to places on PCB)
10.  Microphone (ready to places on PCB)
11.  PCF8574 I2C multiplexer (ready to places on PCB)
12.  Buzzer (ready to places on PCB)
13.  MPU9250 (ready to places on PCB)
14.  MPU6050 (ready to places on PCB)
15.  RFID Module (ready to places on PCB)
16.  SD card up to 16GB tested
17.  RTC clock crystal places are on PCB
18.  Socet for HDC1080 sensor

Pin Table

Pin Orders and Schematic

Product List

Github Example Codes

https://github.com/fixajteknik/ESP32-S3-Tutorials
0 forks.
0 stars.
0 open issues.

Recent commits:

• Update README.md, GitHub
• rs485 tutorial added, Mehmet YILDIZ
• lora codes, Mehmet YILDIZ
• Initial commit, GitHub

CANBUS Schematic
